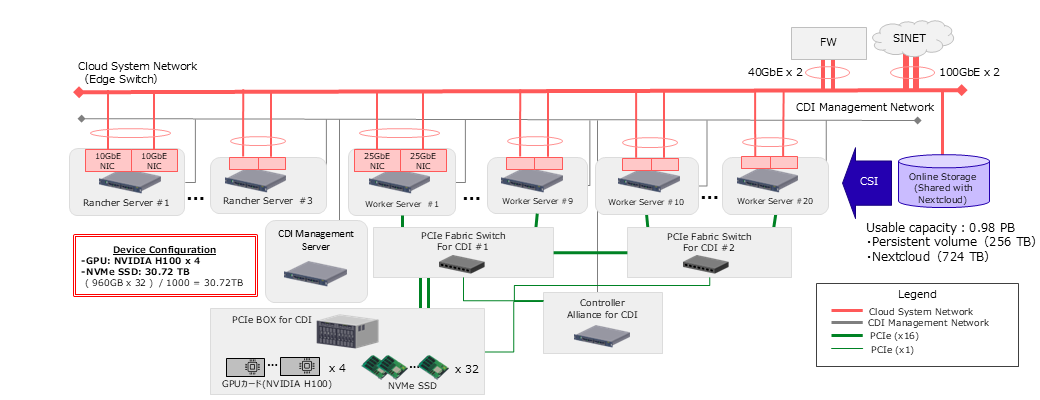

Overview of Research Cloud System
The Research Cloud System envisions the next generation of academic information infrastructure by integrating PCIe fabric–based disaggregated computing technology with Kubernetes-based OS container technology. This combination delivers an advanced cloud computing environment. Moving beyond the traditional concept of providing servers (computing resources), the system offers research application platforms that support research more directly and flexibly, meeting the diverse needs of researchers both within and outside the institution.
Hardware
| Server | |||
| Worker server | Model | PRIMERGY RX2530 M7 for CDI | |
| Number of nodes | 20 | ||
| CPU | Intel Xeon Gold 6538N (32C/2.1GHz) x 2 | ||
| Memory | 256GiB | ||
| Network | 25Gb Ethernet x 2 | ||
| Rancher server | Model | PRIMERGY RX2530 M7 | |
| Number of nodes | 3 | ||
| CPU | Intel Xeon Gold 6526Y (16C/2.8GHz) x 2 | ||
| Memory | 256GiB | ||
| Storage | 600GB SAS HDD x 2 | ||
| Network | 10Gb Ethernet x 2 | ||
| PCIe Box | Model | PCIe Box for CDI | |
| GPU | NVIDIA H100 x 4 | ||
| Storage | NVMe SSD 30.72TB | ||
| Storage | |||
| Online storate (Shared with Cloud Storage (Nextcloud)) |
Model | DDN ES200NVX2 | |
| Physical capacity | 1.2PB | ||
